>Touch screen > Product FeaturesA single thin transparent conductive film -> Composite multilayer market, available in a variety of technical requirements
manufacuring of TARGET materials
thin film structure design and selection (custom-designed consumer correspondence)

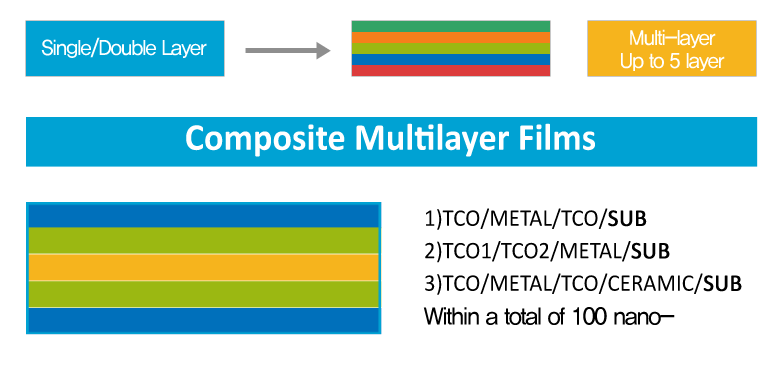

At every other material properties (TCO, METAL, CERAMIC, etc.) MULTI-HYBRIDE LAYER efficient manner through the implementation of technology to improve the structure and characteristics of improving the existing conditions in the market in response to demand characteristics
Low resistance, consumers can custom manufacture complex multilayer at room temperature implements crystalline organization
| index | structure | Resistance/transmittance | package |
|---|---|---|---|
| 100,micron | Crystalline | 20ohom/sq less, 88% or more | 20meter |
| 125micron | Crystalline | 20ohom/sq less, 88% or more | 20meter |
| 188micron | Crystalline | 20ohom/sq less, 88% or more | 20meter |

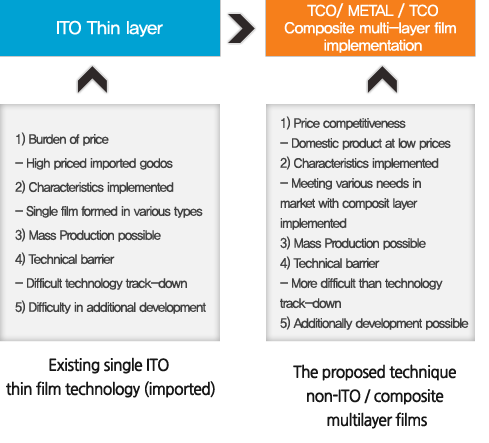

| Existing Technology | The technology - acomposite multi-layer / capacitivetype | |
| Surface texture | Amorphous / crystalline | crystalline |
|---|---|---|
| Material | ITO | AZO/METAL/AZO-Possible changes in multilayer |
| Film structure | Single-layer | More than three layers (multilayer composite structure) |
| Reliability / abrasion | nomal | Excellent long-term reliability - while crystalline organization Excellent in long-term permeability |
| Surface resistance | high | low |

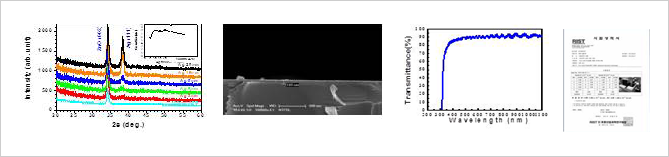

| Result of SHEET- RESISTANCE (4-POINT PROBE) | AVR | ||||
| index | 14.6Ω/sq | 16.5Ω/sq | 15.7Ω/sq | 14.9Ω/sq | 15.42Ω/sq |
|---|---|---|---|---|---|
| sample-1 | 13.8Ω/sq | 16.1Ω/sq | 15.4Ω/sq | 15.2Ω/sq | 15.12Ω/sq |
| sample-2 | 14.9Ω/sq | 14.2Ω/sq | 15.0Ω/sq | 14.6Ω/sq | 14.67Ω/sq |
| sample-3 | 14.7Ω/sq | 15.2Ω/sq | 16.8Ω/sq | 15.9Ω/sq | 15.65Ω/sq |
| TOTAL AVR | 15.21Ω/sq | ||||

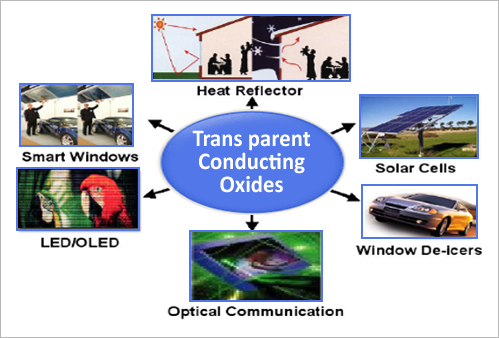

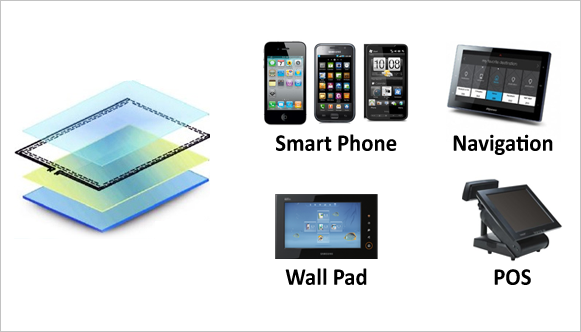

Touch screen module manufacturers
DISPALY advertisers
EMI SHLIED defense industry
FLEXIBLE - solar cell manufacturers

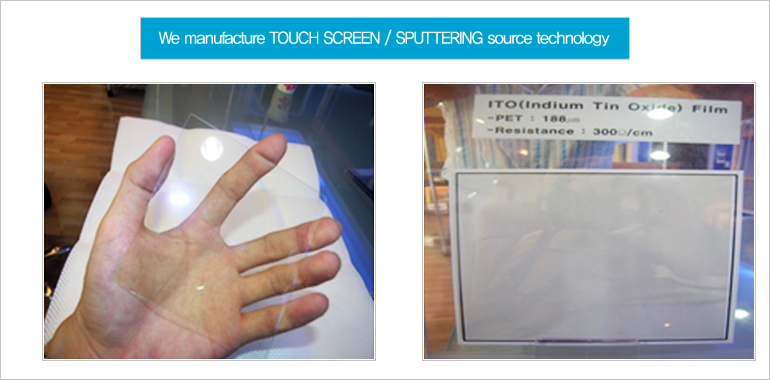

125 micron * 500mm * roll (100meter) Transparent conductive film; film thickness; 100 nm within
The existing high-cost and imported without the use of ITO in the AZO BASE Implementation of a transparent conductive film build and operate a complex nano-thin film process
